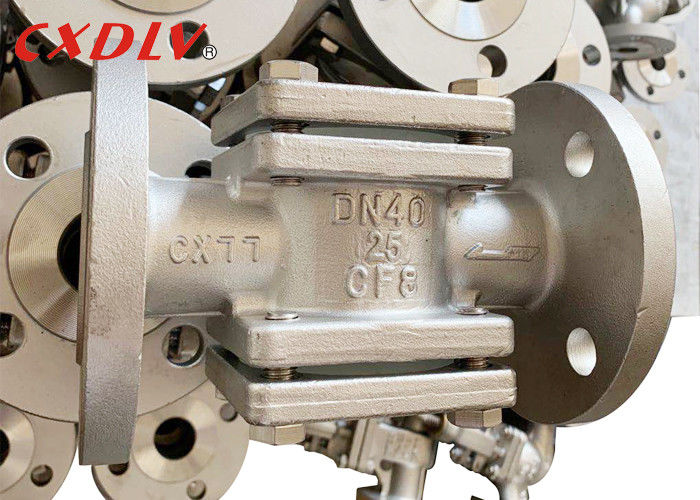

Clear Visual Inspection with Flanged Sight Glass Featuring Double Glass Window for Liquid Flow Monitoring in Industrial Pipe Systems
Dettagli:
| Luogo di origine: | Cina |
| Marca: | CXDLV |
| Certificazione: | CE&ISO |
| Numero di modello: | Sg-Zt |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 pezzo |
|---|---|
| Prezzo: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Imballaggi particolari: | Casi di compensato adatti in base alla struttura delle valvole diverse |
| Tempi di consegna: | 5 ~ 25 giorni di lavoro |
| Capacità di alimentazione: | 1000pcs/mon |
|
Informazioni dettagliate |
|||
| Materiale: | CF8, CF3, CF8M… | Bicchiere: | Borosilicato |
|---|---|---|---|
| Struttura: | Palle dentro | GLASKET: | Ptfe |
| Temperatura: | 20 ℃ ~ 185 ℃ | Connessione: | 150LB RF |
| Misurare: | 1/2 "~ 8" | ||
| Evidenziare: | flanged sight glass for liquid flow,double glass window sight glass,industrial pipe system sight glass |
||
Descrizione di prodotto
Clear Visual Inspection with Flanged Sight Glass Featuring Double Glass Window for Liquid Flow Monitoring in Industrial Pipe Systems
Product Feature
A Sight Flow Indicator is a device installed into a pipe to provide a visual of verifying liquid flow for direction and accurate flow rate. Sight Flow Indicators allow operators to observe the color and clarity of liquids through a window. A sight flow indicator is a body with one or more viewing windows,usually with gasket,and a way to mount the indicator to the pipeline,such as flanged,threaded connections.Sight flow indicator are available to fit standard pipe ranging from 1/2"~8" and carry ANSI pressure rating.
Double Flange Sight Glass
Applicable Standards:
- Design and Manufacturing: ASTM B16.34
- Flange Connection: ASTI16.5
- Test and Inspection: API598
Size Range:
- 1/2"~8"
Pressure Rating:
- ANSI 300LB
Temperature Range:
- -20°C~185°C
Double Window Sight Glass is a simple assembly of two glasses on single cast or fabricated body at two opposite sides. Use of these types of flow indicator is for spot inspection and view of process parameter.
Salient Features
Easy Maintenance
Available in all most all Material of Construction
Manufactured to the Highest Standard
Durable Construction
Material Test Certificate & Pressure Test Certificates furnished on request.
Technical Data
| Size | Dimension(mm) | ||||||
| H | L | D | D1 | D2 | b | Z-d | |
| 2" | 140 | 230 | 162 | 127 | 92 | 23 | 8-19 |
| 6" | - | 420 | 318 | 270 | 216 | 36.5 | 12-22 |
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
